產品材質：接頭主體部位采用不銹鋼、黃銅鍍鎳制成，夾緊件采用尼龍塑料（PA）制成，密封件和O型密封圈均采用丁腈橡膠（NBR）制成；
產品認證：歐洲CE認證、歐洲ROHS認證；
防護等級：在規定的卡口范圍內，并使用O型密封圈旋緊迫緊頭，達到IP68-10巴壓力；
工作溫度：靜態：-40℃到100℃，短時間達120℃。
動態：-20℃~到80℃，短時間達100℃；
螺紋長度：短螺紋適合用于薄型機板的開孔或附有內螺紋的設備上，長螺紋適合接合厚型機板。螺紋加長型可定制；

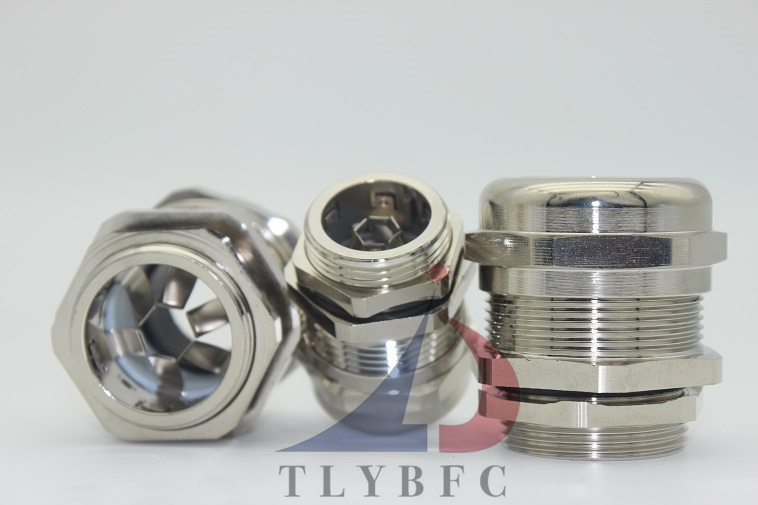

產品特性：本產品經特殊設計，將金屬電纜固定頭當作是一個端體，當隔離線電纜進入本固定頭時.可利用固定頭內所附加的銅制接觸片來與電纜線內的金屬隔離編制網作接觸，進而引導干擾的電磁波到接地線上，使電磁波干擾源得以疏散。本款銅制電纜固定頭全方位尺寸能充分地被應用到所有需防磁波的出線領域上，并扎實的提供防水IP68與固定抗拉的效果；更多選擇：可根據客戶實際需要，特別定制。需要訂購時歡迎來電咨詢。
Material: Brass. nickel plated、Staninless steel
Claw: PA
Sealing and sealing ring: NBR
Approvals: CE, ROHS,
Protection degree: IP68
Temperature Resistance:-400℃ to 100℃, short time to 120℃
Function: EMC cable gland is designed for use with unarmoured, elastometric and plastic cable or braided cables where EMC is requi red Suitable for both indoor & outdoor applications, seals on cable outer sheath to IP68, and if fitted with patented EMC membrane, suitable to carry on cable shield.
M螺紋， M-EMC Thread
型號
Model number
|
螺紋規格
Thread Dimension
|
接線范圍
Clamping range（mm）
|
螺紋外徑
AG（mm）
|
螺紋長度
GL
|
高度
H
|
扳手尺寸
Wrench Size（mm）
|
訂貨號
Article No.
|
包裝單位
Packet Units
|
|
TLYBFC-RHSM.EMC.M12.A
|
M12×1.5
|
3-6.5
|
12.0
|
6.5
|
19
|
14
|
39 00 5022 0120 07
|
50
|
|
TLYBFC-RHSM.EMC.M16.A
|
M16×1.5
|
5-10
|
16.0
|
6
|
22
|
20
|
39 00 5022 0160 07
|
50
|
|
TLYBFC-RHSM.EMC.M16.B
|
M16×1.5
|
4-8
|
16.0
|
6
|
22
|
20
|
39 00 5022 0161 07
|
50
|
|
TLYBFC-RHSM.EMC.M20.A
|
M20×1.5
|
10-14
|
20.0
|
6
|
24
|
24
|
39 00 5022 0200 07
|
50
|
|
TLYBFC-RHSM.EMC.M20.B
|
M20×1.5
|
7-12
|
20.0
|
6
|
24
|
24
|
39 00 5022 0201 07
|
50
|
|
TLYBFC-RHSM.EMC.M25.A
|
M25×1.5
|
13-18
|
25.0
|
7
|
26
|
30
|
39 00 5022 0250 07
|
20
|
|
TLYBFC-RHSM.EMC.M25.B
|
M25×1.5
|
9-16
|
25.0
|
7
|
26
|
30
|
39 00 5022 0251 07
|
20
|
|
TLYBFC-RHSM.EMC.M32.A
|
M32×1.5
|
18-25
|
32.0
|
8
|
31
|
40
|
39 00 5022 0320 07
|
20
|
|
TLYBFC-RHSM.EMC.M32.B
|
M32×1.5
|
15-22
|
32.0
|
8
|
31
|
40
|
39 00 5022 0321 07
|
20
|
|
TLYBFC-RHSM.EMC.M32.C
|
M32×1.5
|
15-25
|
32.0
|
8
|
33
|
36
|
39 00 5022 0322 07
|
20
|
|
TLYBFC-RHSM.EMC.M40.A
|
M40×1.5
|
22-32
|
40.0
|
8
|
37
|
50
|
39 00 5022 0400 07
|
10
|
|
TLYBFC-RHSM.EMC.M50.A
|
M50×1.5
|
32-38
|
50.0
|
9
|
37
|
57
|
39 00 5022 0500 07
|
10
|
|
TLYBFC-RHSM.EMC.M63.A
|
M63×1.5
|
37-44
|
63.0
|
10
|
38
|
64/68
|
39 00 5022 0630 07
|
5
|
|
TLYBFC-RHSM.EMC.M63.B
|
M63×1.5
|
38-53
|
63.0
|
10
|
38
|
64/68
|
39 00 5022 0631 07
|
5
|
型號
Model number
|
螺紋規格
Thread Dimension
|
接線范圍
Clamping range（mm）
|
螺紋外徑
AG（mm）
|
螺紋長度
GL
|
高度
H
|
扳手尺寸
Wrench Size（mm）
|
訂貨號
Article No.
|
包裝單位
Packet Units
|
|
TLYBFC-RHSM.EMC.PG7.A
|
PG7
|
3-6.5
|
12.5
|
5
|
19
|
14
|
39 00 5022 1070 07
|
50
|
|
TLYBFC-RHSM.EMC.PG9.B
|
PG9
|
4-8
|
15.2
|
6
|
21
|
17
|
39 00 5022 1091 07
|
50
|
|
TLYBFC-RHSM.EMC.PG11.A
|
PG11
|
5-10
|
18.6
|
6
|
22
|
20
|
39 00 5022 1110 07
|
50
|
|
TLYBFC-RHSM.EMC.PG13.5.B
|
PG13.5
|
6-12
|
20.4
|
6.5
|
24
|
22
|
39 00 5022 1131 07
|
50
|
|
TLYBFC-RHSM.EMC.PG16.A
|
PG16
|
10-14
|
22.5
|
6.5
|
23
|
24
|
39 00 5022 1160 07
|
50
|
|
TLYBFC-RHSM.EMC.PG21.B
|
PG21
|
13-18
|
28.3
|
7
|
24
|
30
|
39 00 5022 1211 07
|
20
|
|
TLYBFC-RHSM.EMC.PG29.A
|
PG29
|
18-25
|
37
|
8
|
29
|
40
|
39 00 5022 1290 07
|
20
|
|
TLYBFC-RHSM.EMC.PG29.B
|
PG29
|
13-20
|
37
|
8
|
29
|
40
|
39 00 5022 1291 07
|
20
|
|
TLYBFC-RHSM.EMC.PG36.A
|
PG36
|
22-32
|
47
|
8
|
35
|
50
|
39 00 5022 1360 07
|
10
|
|
TLYBFC-RHSM.EMC.PG36.B
|
PG36
|
20-26
|
47
|
8
|
35
|
50
|
39 00 5022 1361 07
|
10
|
|
TLYBFC-RHSM.EMC.PG42.A
|
PG42
|
32-38
|
54
|
9
|
37
|
57
|
39 00 5022 1420 07
|
10
|
|
TLYBFC-RHSM.EMC.PG42.B
|
PG42
|
25-31
|
54
|
9
|
37
|
57
|
39 00 5022 1421 07
|
10
|
|
TLYBFC-RHSM.EMC.PG48.A
|
PG48
|
37-44
|
59.3
|
10
|
38
|
64
|
39 00 5022 1480 07
|
5
|
|
TLYBFC-RHSM.EMC.PG48.B
|
PG48
|
38-53
|
59.3
|
10
|
38
|
64
|
39 00 5022 1481 07
|
5
|
