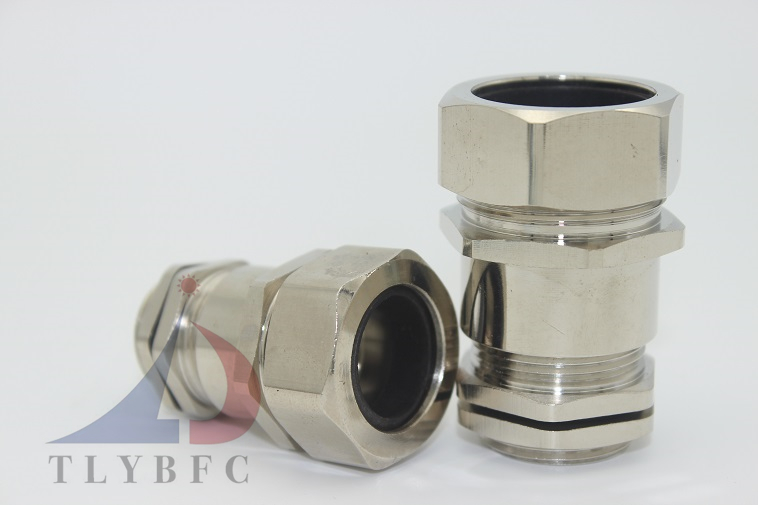

產品材質： A.C.F.G.部分采用優良的黃銅鍍鎳或不銹鋼304制成，D部分采用UL認可之尼龍PA66制成，
B.E部分采用EPDM耐候橡膠制成。各個孔徑、材質的橡膠可接受訂制。
螺牙規格： 公制牙（Metric/ EN50262）、PG牙、G（PF）牙及美制牙（NPT）。
工作溫度： -40℃~+100℃短時可達+120℃。
產品顏色： A.C.F.G部位為金屬色，D為白色，B.E為黑色
防護等級： 在規定的卡口范圍內，并使用O形密封圈旋轉緊迫接頭，達到IP67。
產品特性
配套鎖式電纜接頭，防電線松動，內鎖扣合本體特殊設計，
裝卸只需拔插無需工具，大大縮減了安裝時間，夾緊電纜范圍大，
抗拉力特強，產品有耐酸堿、耐化學物質與一般溶劑等抗腐蝕特性，
可防水、防塵 全方位的尺寸可廣泛應用于各個領域的出線孔上。
|
型號
|
螺牙標準
|
電纜外徑
|
對應軟管
|
螺紋外徑
|
螺紋長度
|
扳手徑
|
數量
|
|
TLYBFC-RGDL-M12
|
M12X1.5
|
3-6
|
AD10.0
|
12
|
6
|
16
|
100
|
|
TLYBFC-RGDL-M14
|
M14X1.5
|
3-6
|
AD10.0
|
14
|
6
|
16
|
100
|
|
TLYBFC-RGDL-M16
|
M16X1.5
|
4-8
|
AD13.0
|
16
|
7
|
18
|
100
|
|
TLYBFC-RGDL-M18
|
M18X1.5
|
6-10
|
AD15.8
|
18
|
8
|
20
|
100
|
|
TLYBFC-RGDL-M20
|
M20X1.5
|
8-12
|
AD15.8
|
20
|
8
|
22
|
50
|
|
TLYBFC-RGDL-M20
|
M20X1.5
|
8-12
|
AD18.5
|
20
|
8
|
22
|
50
|
|
TLYBFC-RGDL-M20
|
M20X1.5
|
8-12
|
AD21.2
|
20
|
8
|
22
|
50
|
|
TLYBFC-RGDL-M22
|
M22X1.5
|
10-14
|
AD21.2
|
22
|
9
|
24
|
50
|
|
TLYBFC-RGDL-M24
|
M24X1.5
|
10-14
|
AD21.2
|
21
|
10
|
27
|
50
|
|
TLYBFC-RGDL-M25
|
M25X1.5
|
10-14
|
AD21.2
|
25
|
10
|
28
|
50
|
|
TLYBFC-RGDL-M25
|
M25X1.5
|
10-14
|
AD28.5
|
25
|
10
|
28
|
50
|
|
TLYBFC-RGDL-M27
|
M27X1.5
|
13-18
|
AD28.5
|
27
|
11
|
30
|
50
|
|
TLYBFC-RGDL-M30
|
M30X1.5
|
13-18
|
AD34.5
|
30
|
11
|
32
|
50
|
|
TLYBFC-RGDL-M32
|
M32X1.5
|
15-22
|
AD34.5
|
32
|
11
|
36
|
20
|
|
TLYBFC-RGDL-M33
|
M33X1.5
|
15-22
|
AD34.5
|
33
|
11
|
36
|
20
|
|
TLYBFC-RGDL-M36
|
M36X1.5
|
18-25
|
AD34.5
|
36
|
11
|
42
|
10
|
|
TLYBFC-RGDL-M40
|
M40X1.5
|
18-25
|
AD42.5
|
40
|
12
|
45
|
10
|
|
TLYBFC-RGDL-M50
|
M50X1.5
|
26-32
|
AD54.5
|
50
|
13
|
56
|
5
|
|
TLYBFC-RGDL-M63
|
M63X1.5
|
37-44
|
AD54.5
|
63
|
14
|
70
|
5
|
|
型號
|
螺牙標準
|
電纜外徑
|
對應軟管
|
螺紋外徑
|
螺紋長度
|
扳手徑
|
數量
|
|
TLYBFC-RGDL-PG7
|
PG7
|
3-6
|
AD10.0
|
12.5
|
6
|
16
|
100
|
|
TLYBFC-RGDL-PG9
|
PG9
|
4-8
|
AD13.0
|
15.2
|
7
|
16
|
100
|
|
TLYBFC-RGDL-PG11
|
PG11
|
6-10
|
AD15.8
|
18.6
|
8
|
20
|
50
|
|
TLYBFC-RGDL-PG13.5
|
PG13.5
|
8-12
|
AD15.8
|
20.4
|
8
|
22
|
50
|
|
TLYBFC-RGDL-PG13.5
|
PG13.5
|
8-12
|
AD18.5
|
20.4
|
8
|
22
|
50
|
|
TLYBFC-RGDL-PG13.5
|
PG13.5
|
8-12
|
AD21.2
|
20.4
|
8
|
22
|
20
|
|
TLYBFC-RGDL-PG16
|
PG16
|
10-14
|
AD21.2
|
22.5
|
9
|
24
|
20
|
|
TLYBFC-RGDL-PG21
|
PG21
|
13-18
|
AD28.5
|
28.3
|
11
|
30
|
10
|
|
TLYBFC-RGDL-PG29
|
PG29
|
18-25
|
AD34.5
|
34.5
|
11
|
42
|
10
|
|
TLYBFC-RGDL-PG36
|
PG36
|
26-32
|
AD42.5
|
42.5
|
13
|
52
|
5
|
|
TLYBFC-RGDL-PG48
|
PG48
|
37-44
|
AD54.5
|
54.5
|
14
|
64
|
5
|
|
型號
|
螺牙標準
|
電纜外徑
|
對應軟管
|
螺紋外徑
|
螺紋長度
|
扳手徑
|
數量
|
|
TLYBFC-RGDL-G1/4
|
G1/4
|
3-6
|
AD10.0
|
13.2
|
6
|
16
|
100
|
|
TLYBFC-RGDL-G3/8
|
G3/8
|
4-8
|
AD13.0
|
26.5
|
7
|
18
|
100
|
|
TLYBFC-RGDL-G1/2
|
G1/2
|
8-12
|
AD15.8
|
21.3
|
8
|
22
|
50
|
|
TLYBFC-RGDL-G1/2
|
G1/2
|
8-12
|
AD18.5
|
21.3
|
8
|
22
|
50
|
|
TLYBFC-RGDL-G1/2
|
G1/2
|
8-12
|
AD21.2
|
21.3
|
8
|
22
|
20
|
|
TLYBFC-RGDL-G3/4
|
G3/4
|
10-14
|
AD21.2
|
26.6
|
8
|
30
|
20
|
|
TLYBFC-RGDL-G1”
|
G1"
|
13-18
|
AD28.5
|
33.4
|
11
|
36
|
10
|
|
TLYBFC-RGDL-G1 1/4
|
G1 1/4
|
18-25
|
AD34.5
|
42.1
|
11
|
48
|
10
|
|
TLYBFC-RGDL-G1 1/2
|
G1 1/2
|
26-32
|
AD42.5
|
47.8
|
13
|
52
|
5
|
|
TLYBFC-RGDL-G2”
|
G2"
|
37-44
|
AD54.5
|
59.6
|
12
|
64
|
5
|
|
型號
|
螺牙標準
|
電纜外徑
|
對應軟管
|
螺紋外徑
|
螺紋長度
|
扳手徑
|
數量
|
|
TLYBFC-RGDL-NPT3/8
|
NPT3/8
|
4-8
|
AD13.0
|
16.5
|
7
|
18
|
100
|
|
TLYBFC-RGDL-NPT1/2
|
NPT1/2
|
8-12
|
AD15.8
|
21.3
|
8
|
22
|
50
|
|
TLYBFC-RGDL-NPT1/2
|
NPT1/2
|
8-12
|
AD18.5
|
21.3
|
8
|
22
|
50
|
|
TLYBFC-RGDL-NPT1/2
|
NPT1/2
|
8-12
|
AD21.2
|
21.3
|
8
|
22
|
20
|
|
TLYBFC-RGDL-NPT3/4
|
NPT3/4
|
13-18
|
AD21.2
|
26.6
|
11
|
30
|
20
|
|
TLYBFC-RGDL-NPT3/4
|
NPT3/4
|
13-18
|
AD28.5
|
26.6
|
11
|
30
|
10
|
|
TLYBFC-RGDL-NPT1"
|
NPT1"
|
15-22
|
AD34.5
|
33.4
|
11
|
36
|
10
|
